DXF/PDF plans: Welding Table Accessory Set - dWTA01
System 16/28 | Thickness 10/12/15 mm
Price
€30,00(tax incl.)
Select plan configuration:
Clicking "Buy Now" will take you to the Easytools cart.
Can't find the right project? Get in touch:
Work Like a Pro
Get the plans and start building today.
Product Details
Upgrade your workshop and unlock the full potential of your welding table. The dWTA01 Kit is the official technical documentation for professional tooling that you’ve seen in action on the Mateusz Doniec channel. This system is designed to ensure repeatability, perfect angles, and rapid part setup. The project was created by combining Mateusz's workshop practice with the engineering expertise of a technologist with 20 years of experience in steel construction design.
What exactly is included in the dWTA02 package?
By purchasing this product, you receive a complete set of digital documentation (DXF and PDF files) for the following components:

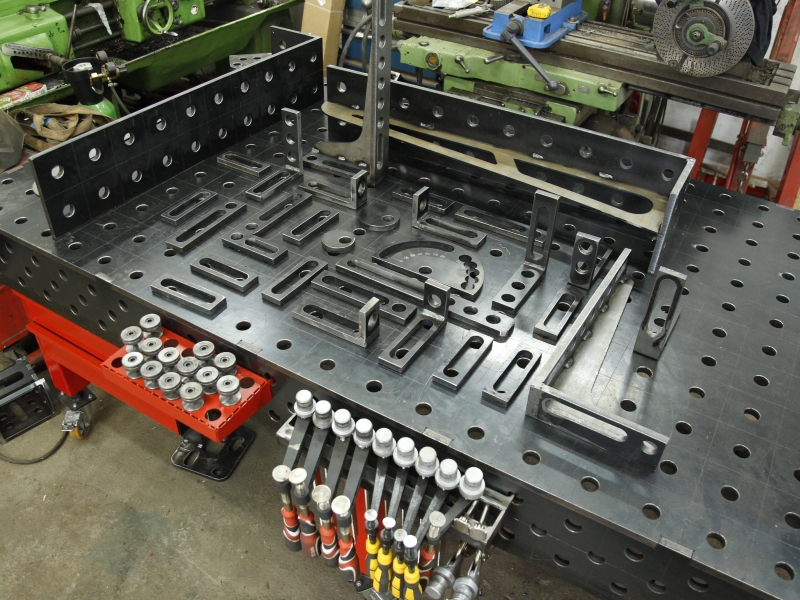

Comprehensive square set: Plans for flat squares, 3D weldable versions, and squares in the following dimensions: 175x85, 175x125, and 175x175.
Universal stops and spacers: Documentation for precision stops and spacers for rapid part positioning.
Eccentric discs: Plans for discs in two diameter variants: Ø75 and Ø100.
Base elements and extensions: Documentation for a 1000mm weldable extension and a flat protractor.
Workshop organization: Plans for practical pin shelves and clamp racks to be mounted directly on the table.
Additional modules: Plans for weldable bases in sizes: 350x250, 500x250, 600x250, and 750x250.
What’s included in this project?
Precision DXF files: Ready for laser cutting, optimized for minimal steel waste.
Detailed assembly instructions (PDF): A step-by-step guide on how to assemble and prepare the accessories for work.
Full material list: A detailed breakdown of plate thicknesses and steel grades for the entire kit.
Technical documentation and 3D views: Clear assembly drawings for easy fabrication.
Why choose this kit?
Full compatibility: Project exclusively tailored for the professional 28 / 16 mm hole system.
Fraction of market cost: Building these tools yourself saves thousands compared to off-the-shelf products.
Field-tested project: Every element has been proven to "get the job done" in Mateusz Doniec's workshop.
ℹ️ Digital Product (DIY Plans)
This purchase includes only digital build plans and helper files (DXF/PDF) for self-assembly. This is NOT a physical product. Completing the project requires your own materials, tools, and appropriate skills.
Post-Purchase Support
Our goal isn’t simply to sell plans and end our relationship with the customer.
By purchasing a project, you receive not only the DXF/PDF files but also dedicated technical support.
After your purchase, you will receive an email address for a technical expert who can answer any questions regarding the documentation.
We help clarify markings, dimensions, specified materials, and the assembly sequence to ensure a smooth transition from design to finished product.
ℹ️ Technical support applies to the purchased documentation and its correct interpretation. It does not include making custom modifications to the design, such as altering dimensions, structural changes, or tailoring the project to individual requirements. If you need a custom-modified design, please contact us at: trajder.sklep@gmail.com
Reviews
bardzo duzy porzadek w plikach na plus, poczatkowo nie chcualem brac zestawu bo potrzebowalem tylko polowe rzeczy ale po wycieciu i zlozeniu szybko sie przyzwyczailem do nowych narzedzi i uzywam ich rowniez. ogolnie spoko wszystko
