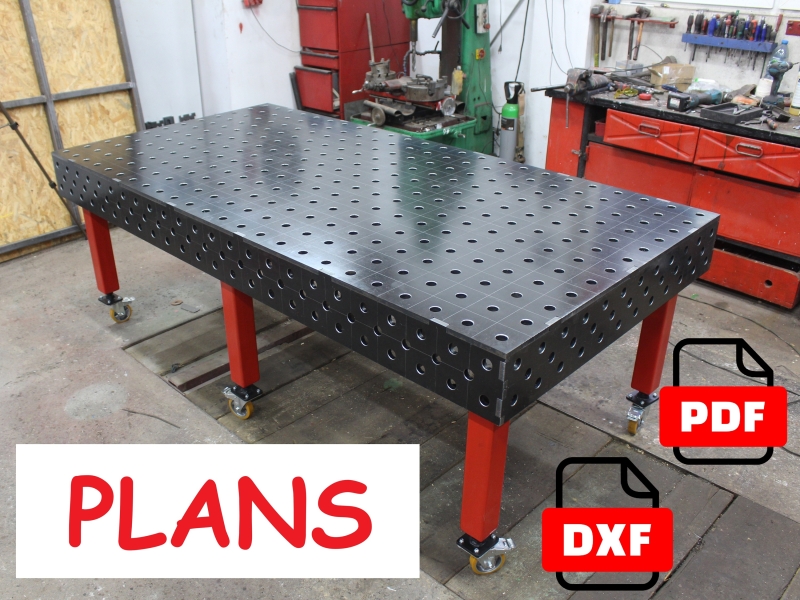

DXF/PDF Plans: Welding Table Build Plans 2400x1200 mm – dWT01
System Ø16/28 | Top 10/12/15 mm
Price
€35,00(tax incl.)
Select table version:
See what's included
- WTA Tooling Kit (dWTA01): Professional plans for precision squares, stops, and positioning pins — 50% OFF in this bundle!
Clicking "Buy Now" will take you to the Easytools cart.
Can't find the right project? Get in touch:
TRAJDER©
Download now. Build today.
Product Details
Build a welding table that will transform your workshop. This is the official technical documentation for the table you know from the Mateusz Doniec channel. This project is not just a “drawing” — it is the result of combining Mateusz’s practical workshop experience with the 20 years of experience of our technologist. You receive a proven, stable and highly precise construction that you can build for a fraction of the market price.
Why choose the dWT02 project?
By purchasing this product, you receive complete documentation (DXF and PDF files):
2400x1200 mm size: An ideal working surface for medium-length profiles, frames and gate constructions.
Full mobility: Thanks to its own wheel system, once the work is done, you can move the table back against the wall and regain space in your garage.
System 16/28 compatibility: Plans are available for both standards — choose the version that matches your tools.
Material flexibility: The project is prepared for 10,12 and 15mm thick steel plates. You decide on the balance between rigidity and budget.
“Building block” assembly: Precise DXF files for laser cutting make the build simple, fast and possible without specialist machinery.
What does this project include?
Precise DXF files: Ready for laser cutting and designed to keep material waste to a minimum.
Detailed assembly manual (PDF): A clear step-by-step guide that makes preparation and assembly of all parts easier.
Complete material list: A detailed breakdown of the steel plate thicknesses and steel grades required to build the complete set.

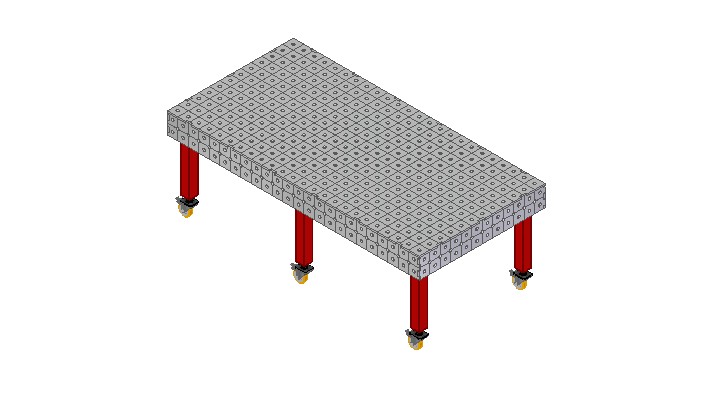

Technical documentation and 3D views: Clear assembly drawings that make fabrication and assembly easier.
BONUS: Behind-the-scenes photos from the welding table build at Mateusz Doniec’s workshop.
Why is this set worth choosing?
Project verified in real workshop use: Every element of this table has proven itself in Mateusz Doniec’s workshop.
Proven workshop solutions: The project was created based on real workshop needs and hands-on experience with welding table work.
Complete project in one place: DXF files, PDF manual, material list and technical drawings — everything you need to build the set.
A fraction of the market price: Building the table yourself can save you thousands compared to buying ready-made professional products.
Time saving: You receive ready-made documentation that helps you prepare parts for production and assembly faster.
ℹ️ Digital Product (DIY Plans)
This product is digital documentation — a complete set of welding table build plans. It does not include physical accessories, metal parts or a finished table. To complete the project properly, basic welding skills are required, as well as ordering the steel parts to be cut according to the included DXF files, for example by laser or plasma cutting.
Specifications
| Parameter | Value |
|---|---|
| Tabletop dimensions | 2400 x 1200 mm |
| Tabletop and side skirt thickness | 10 / 12 / 15 mm — depending on the selected version |
| Side skirt height | 200 mm |
| Nominal table height | 880 mm |
| Table legs | 80 x 80 mm square steel profile |
| Leg height adjustment | 70 mm |
| Hole system | Ø16 / Ø28 mm (industry standard for professional welding tools) |
| Hole grid | 100 x 100 mm |
| Construction | Ribbed and reinforced — for increased rigidity and stability during use |
| Internal ribs / reinforcements | 5 mm steel plate, regardless of the selected tabletop thickness |
| Wheels | 6 swivel casters with brakes, 200 kg load capacity each |
Post-Purchase Support
Our goal isn’t simply to sell plans and end our relationship with the customer.
By purchasing a project, you receive not only the DXF/PDF files but also dedicated technical support.
After your purchase, you will receive an email address for a technical expert who can answer any questions regarding the documentation.
We help clarify markings, dimensions, specified materials, and the assembly sequence to ensure a smooth transition from design to finished product.
ℹ️ Technical support applies to the purchased documentation and its correct interpretation. It does not include making custom modifications to the design, such as altering dimensions, structural changes, or tailoring the project to individual requirements. If you need a custom-modified design, please contact us at: trajder.sklep@gmail.com
