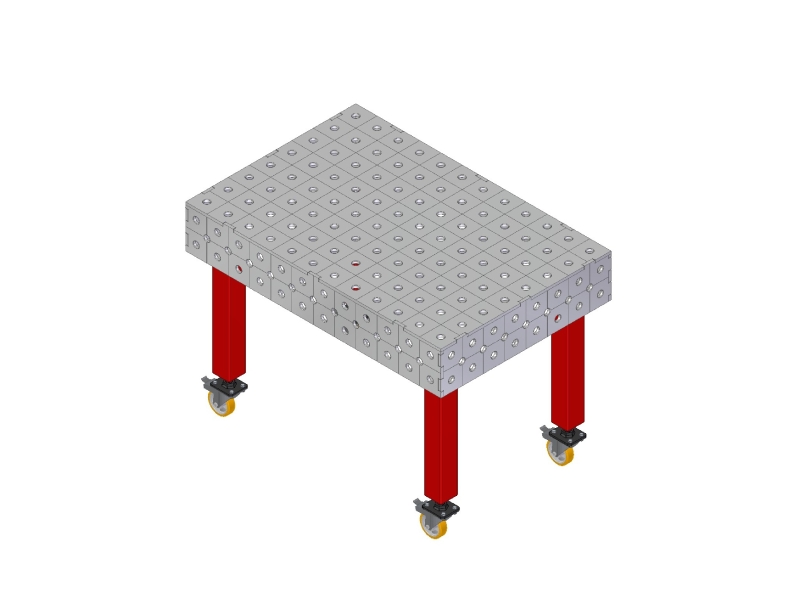

DXF/PDF plans: Welding Table 1200x800 – dWT04
System 16/28 | Top 10/12 mm
Price
€24,00(tax incl.)
Select plan configuration:
✓Instant Email 24/7
Clicking "Buy Now" will take you to the Easytools cart.
Didn’t find the right project for your needs? Get in touch:
TRAJDER©
No more crooked welding
Description
Build a welding table that will transform your workshop. This is the official technical documentation for the table you know from the Mateusz Doniec channel. This project is far more than just a "drawing" – it is the result of combining Mateusz’s hands-on workshop experience with the 20 years of expertise of our technologist. You receive a proven, stable, and highly precise design that you can build for a fraction of the market price.
Why choose the dWT04 project?
When you purchase this product, you receive complete documentation (DXF and PDF files):
1200x800 mm dimensions: An ideal working surface for long profiles, frames, and gate structures.
Full mobility: Thanks to its dedicated wheelbase design, once the job is done you can move the table back against the wall and recover valuable workshop space.
System 16/28 compatibility: The documentation includes plans for both hole standards, so you can match the project to your tooling.
Material flexibility: The project is prepared for 10, 12 mm plates. You decide the balance between rigidity and budget.
Assembly like building blocks: Precise laser-cut DXF files make the build straightforward, fast, and free from the need for specialist machinery.
What does this project include?
Precise DXF files: Ready for laser cutting and designed to minimise material waste.
Detailed assembly manual (PDF): A clear step-by-step guide that makes preparing and assembling all parts much easier.
Complete material list: A detailed specification of plate thicknesses and steel grades required to build the full set.
Technical documentation and 3D views: Clear assembly drawings that make manufacturing and installation easier.
Why is this project worth choosing?
Proven in real workshop use: Every element of this project has been tested in Mateusz Doniec’s workshop.
Workshop-tested solutions: The design was created based on real needs and practical experience gained while working with a welding table.
Complete project in one place: DXF, PDF, material list, and technical drawings — everything you need to manufacture the set.
A fraction of the market price: Building it yourself can save you thousands compared to buying ready-made products.
Time savings: You receive ready-made documentation that helps you prepare parts for production and assembly much faster.
ℹ️ Digital Product (DIY Plans)
This product is digital documentation (a complete set of build plans for the welding table). It is not a physical table or ready-made metal parts. To complete this project correctly, basic welding skills are required, as well as ordering the steel parts to be cut (for example by laser or plasma) according to the attached DXF files.
Specifications
| Parameter | Value |
|---|---|
| Tabletop dimensions | 1200x800 mm |
| Tabletop and side skirt thickness | 10 / 12 mm — depending on the selected version |
| Side skirt height | 200 mm |
| Nominal table height | 880 mm |
| Table legs | 80 x 80 mm square steel profile |
| Leg height adjustment | 70 mm |
| Hole system | Ø16 / Ø28 mm (industry standard for professional welding tools) |
| Hole grid | 100 x 100 mm |
| Construction | Ribbed and reinforced — for increased rigidity and stability during use |
| Internal ribs / reinforcements | 5 mm steel plate, regardless of the selected tabletop thickness |
| Wheels | 4 swivel casters with brakes, 200 kg load capacity each |
Post-Purchase Support
Our goal isn’t simply to sell plans and end our relationship with the customer.
By purchasing a project, you receive not only the DXF/PDF files but also dedicated technical support.
After your purchase, you will receive an email address for a technical expert who can answer any questions regarding the documentation.
We help clarify markings, dimensions, specified materials, and the assembly sequence to ensure a smooth transition from design to finished product.
ℹ️ Technical support applies to the purchased documentation and its correct interpretation. It does not include making custom modifications to the design, such as altering dimensions, structural changes, or tailoring the project to individual requirements. If you need a custom-modified design, please contact us at: trajder.sklep@gmail.com
