Professional Under-Table Storage Drawer Plans - dWTA03
Price
€12,00(tax incl.)
Instant Email | 24/7
Difficulty of assembly
Can't find the right project? Get in touch:
TRAJDER©
No more searching for tools.

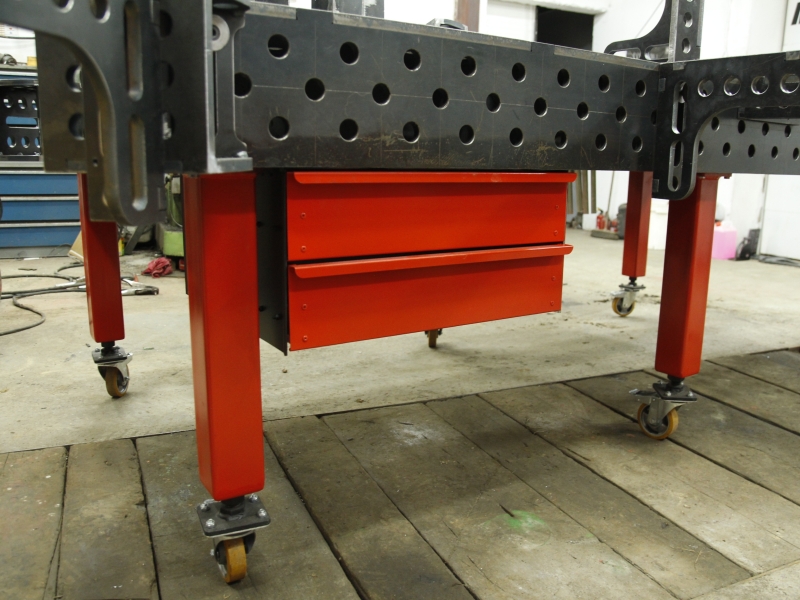

Stop wasting time searching for pins and clamps scattered around your workshop. The dWTA03 Under-Table Storage Drawer is the official technical documentation for the professional organizer you’ve seen in action on the Mateusz Doniec channel. This system is designed to maximize your workspace by utilizing the empty space under your table top. The project was created by combining Mateusz's workshop practice with the engineering expertise of a technologist with 20 years of experience to ensure durability and smooth operation even under heavy tool loads.
What exactly is included in the dWTA03 package?
By purchasing this product, you receive a complete set of digital documentation (DXF and PDF files) for the following components:
Heavy-Duty Drawer Body:Robust, weldable construction designed to hold kilograms of steel pins, clamps, and heavy tooling.
Universal Mounting Brackets:Specialized designs that allow you to mount the drawer securely under almost any welding table frame.
Low-Friction Slide Design:Engineered for smooth movement without the need for expensive, fragile telescopic slides (maintenance-free operation).
Ergonomic Integrated Handle:A clean, flush-mount handle design that won't snag on your work clothes or obstruct your movement around the table.
Material-Optimized DXF Files:Laser-ready layouts designed to fit onto standard sheet metal sizes with minimal scrap material.
The documentation also includes:
Precision DXF files: Ready for laser cutting, optimized for minimal steel waste.
Detailed assembly instructions (PDF): A step-by-step guide on how to assemble and prepare the accessories for work.
Full material list: A detailed breakdown of plate thicknesses and steel grades for the entire kit.
Technical documentation and 3D views: Clear assembly drawings for easy fabrication.
Why choose this kit?
Full compatibility: Design compatible with all table sizes.
Fraction of market cost: Building these tools yourself saves thousands compared to off-the-shelf products.
Field-tested project: Every element has been proven to "get the job done" in Mateusz Doniec's workshop.
⚠️ Important Information:
This product is digital documentation (build plans). It is not a physical table. Realizing this project requires basic welding skills and ordering the steel elements to be cut according to the attached DXF files.
