Professional Welding Table Accessory Set Plans dWTA02
Price
€35,00(tax incl.)
Select system & thickness:
See what's included
- Professional Under-Table Storage Drawer Plans — 17% OFF in this bundle!
Instant Email | 24/7
Difficulty of assembly
Can't find the right project? Get in touch:
Download now. Build today.

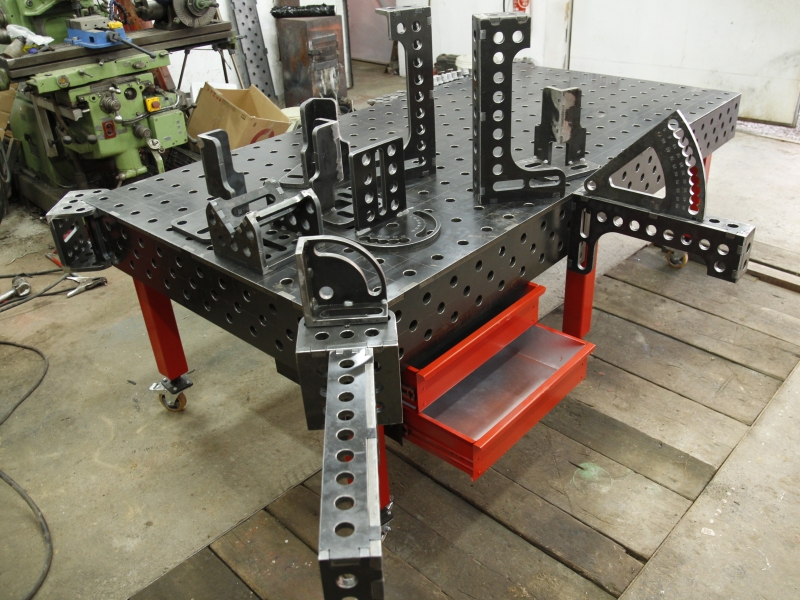

Upgrade your workshop and unlock the full potential of your welding table. The dWTA02 Kit is the official technical documentation for professional tooling that you’ve seen in action on the Mateusz Doniec channel. This system is designed to ensure repeatability, perfect angles, and rapid part setup. The project was created by combining Mateusz's workshop practice with the engineering expertise of a technologist with 20 years of experience in steel construction design.
What exactly is included in the dWTA02 package?
By purchasing this product, you receive a complete set of digital documentation (DXF and PDF files) for the following components:
3D Protractor:Precision documentation for complex angle measurements and three-dimensional setups.
45° Triangle Protractor:Specialized triangle tool for perfect 45-degree alignments and bracing.
Large 3D Square (500x250):Heavy-duty 3D square designed for stabilizing and squaring large workpieces.
Adjustable Square (170x170):Versatile tool for setting custom angles with high repeatability and accuracy.
External Weld Square:Specifically designed for positioning and holding outside corner welds.
Corner & Angle Connector:Essential module for joining table extensions or securing workpieces at 90 degrees.
The documentation also includes:
Precision DXF files: Ready for laser cutting, optimized for minimal steel waste.
Detailed assembly instructions (PDF): A step-by-step guide on how to assemble and prepare the accessories for work.
Full material list: A detailed breakdown of plate thicknesses and steel grades for the entire kit.
Technical documentation and 3D views: Clear assembly drawings for easy fabrication.
Why choose this kit?
Full compatibility: Project exclusively tailored for the professional 28 mm hole system.
Fraction of market cost: Building these tools yourself saves thousands compared to off-the-shelf products.
Field-tested project: Every element has been proven to "get the job done" in Mateusz Doniec's workshop.
⚠️ Important Information:
This product is digital documentation (build plans). It is not a physical table. Realizing this project requires basic welding skills and ordering the steel elements to be cut according to the attached DXF files.
